Coefficient Cd for Trench Installations

12.11.2.2 Modification of Earth Loads For Soil-Structure Interaction
12.11.2.2.1 Embankment and Trench Conditions

Coefficient Cd for Trench Installations

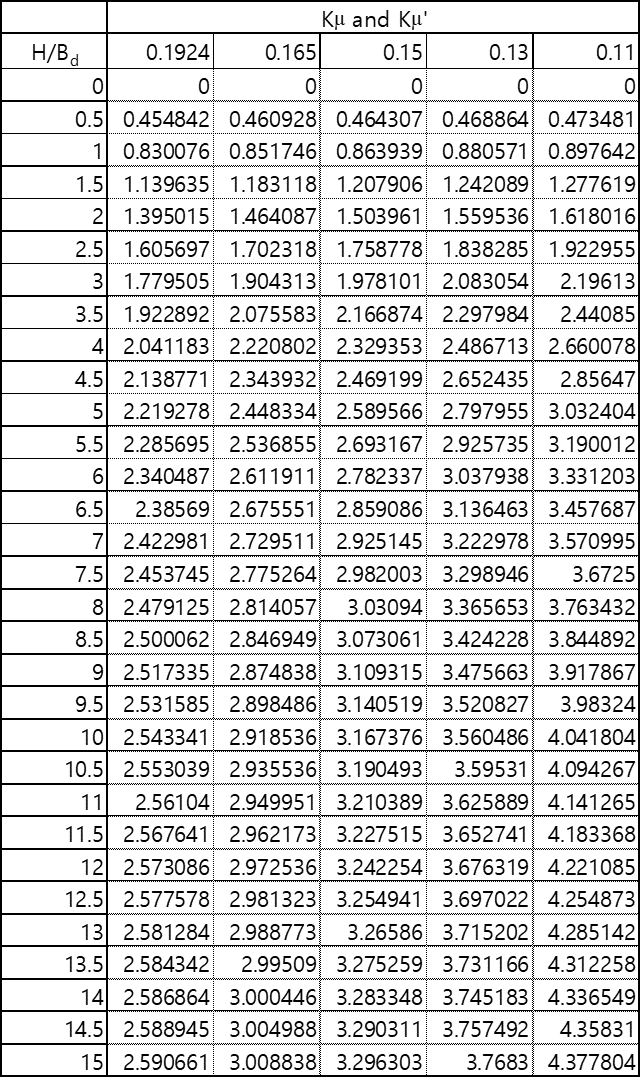

Coefficient Cd for Trench Installations.

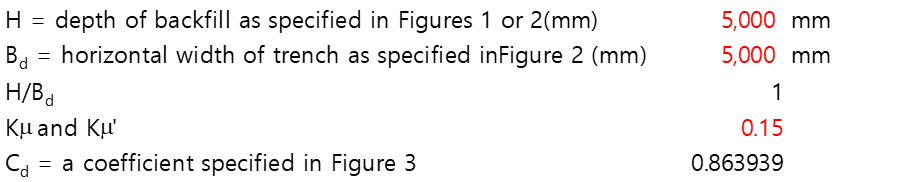

H = depth of backfill as specified in Figures 1 or 2(mm)
Bd = horizontal width of trench as specified in Figure 2 (mm)
H/Bd
Kμ and Kμ'

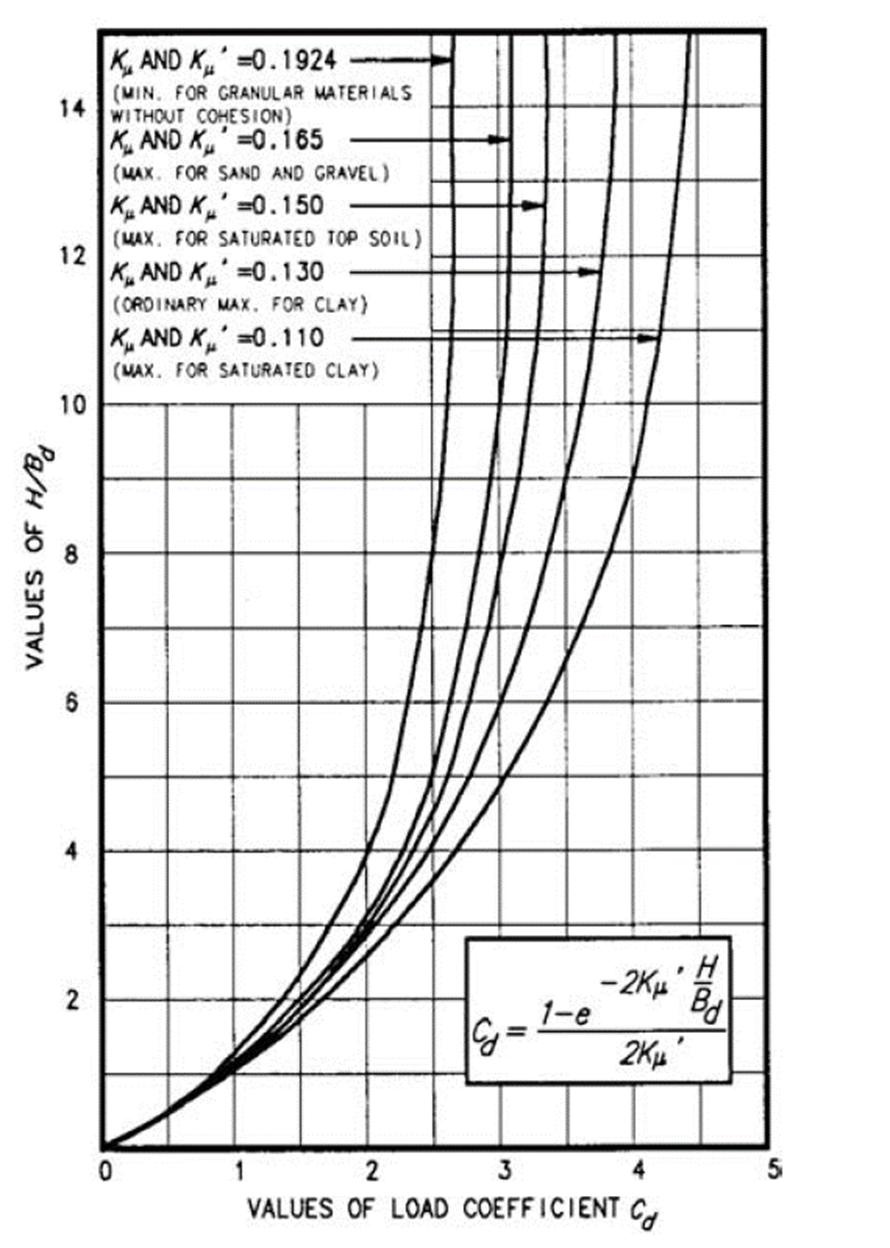

Cd = a coefficient specified in Figure 3






Coefficient Cd for Trench.xlsx

0.19MB



출처:AASHOTO LRFD Bridge design specifications
